N40° CK04
Sale price
$219.00 USD per wheel
Regular price
Regular price
$219.00 USD per wheel
Unit price
Increments of 1
Minimum of 1
Maximum of
N40° CK04
Sale price
$219.00 USD per wheel
Regular price
Regular price
$219.00 USD per wheel
Unit price
Production & Delivery
Estimated dispatch within 2 weeks after final specification confirmation with our team.
Lead times begin from the milestones above, not the payment date. Transit time is additional; economy shipping typically takes 30 days or longer, depending on destination and customs clearance.
All timelines are estimates. We will notify you of any changes to your expected dispatch schedule.
Description

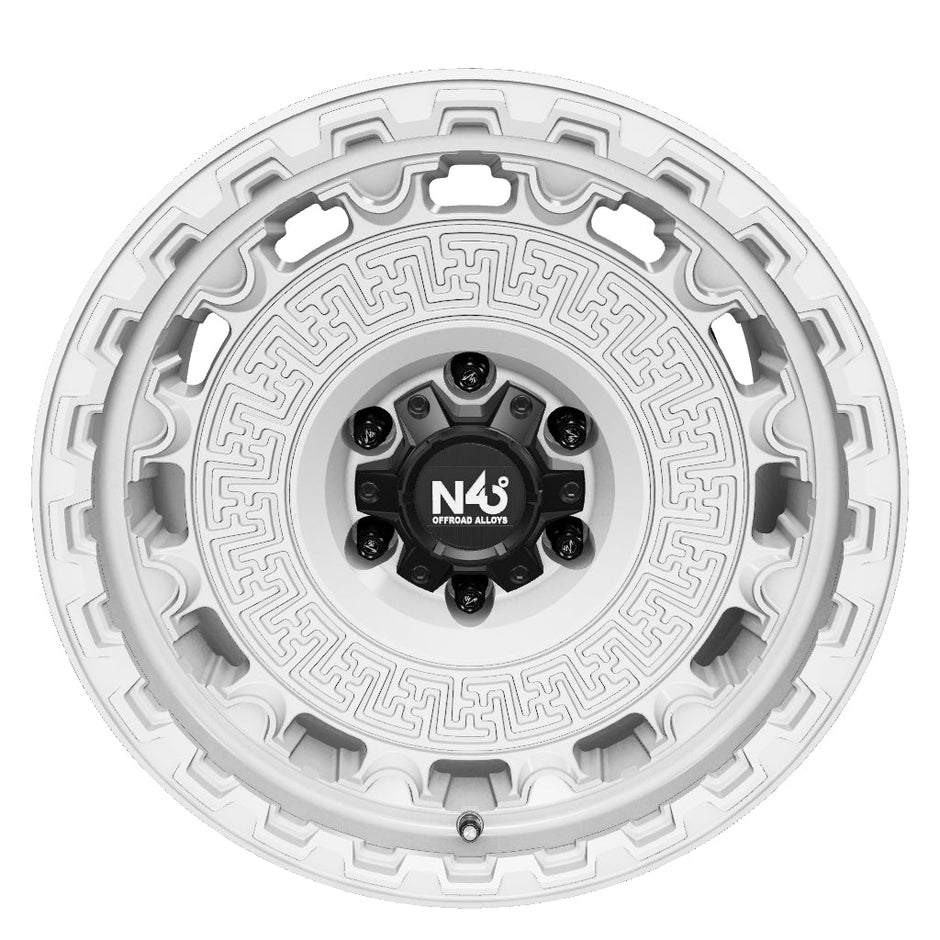

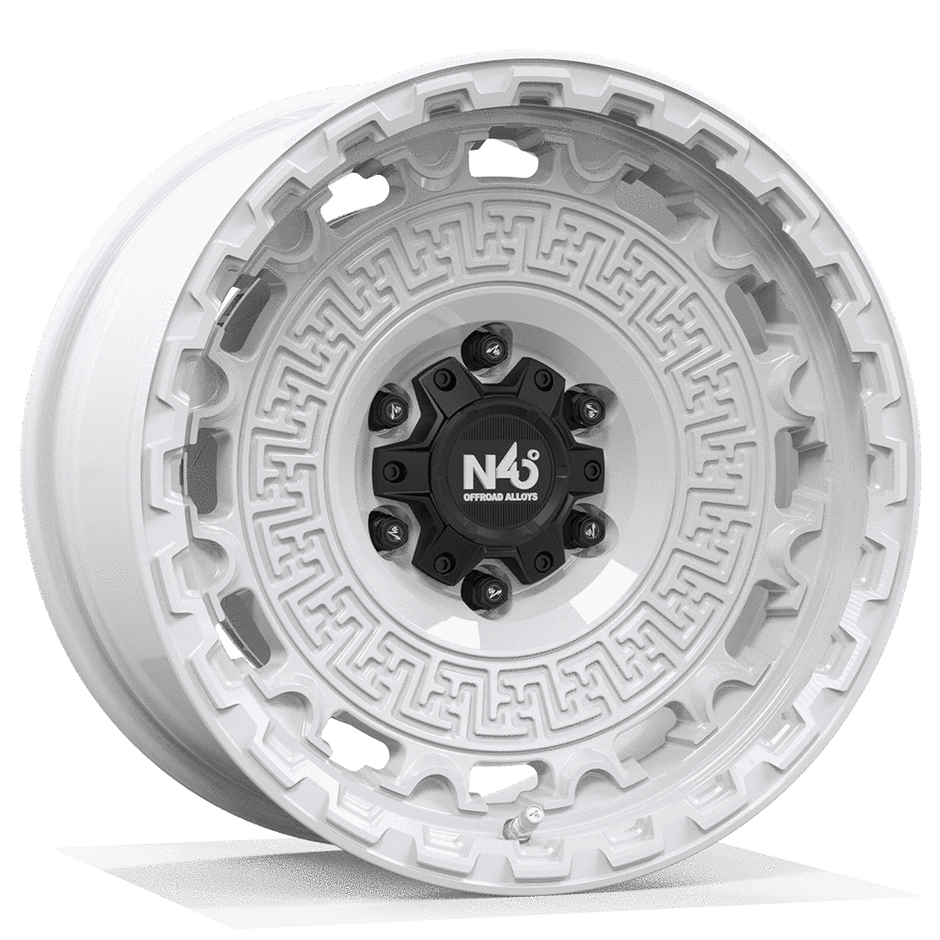

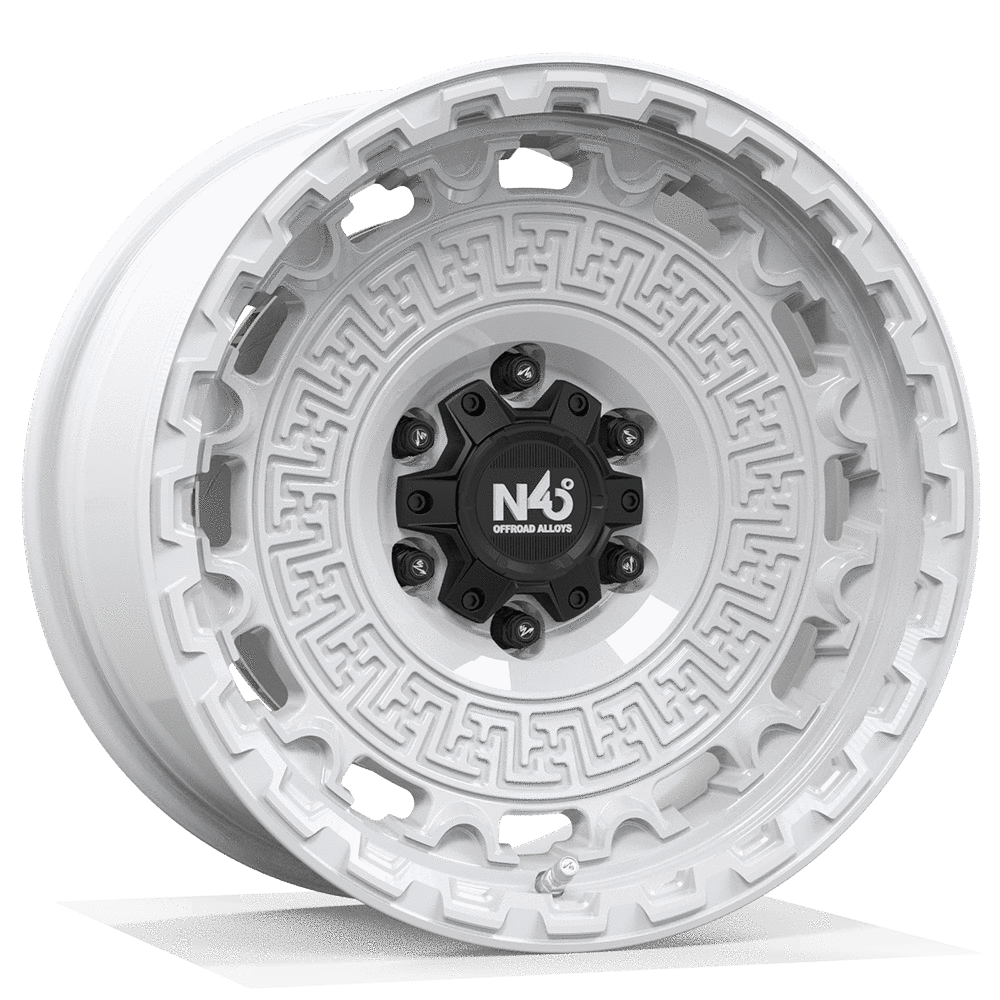

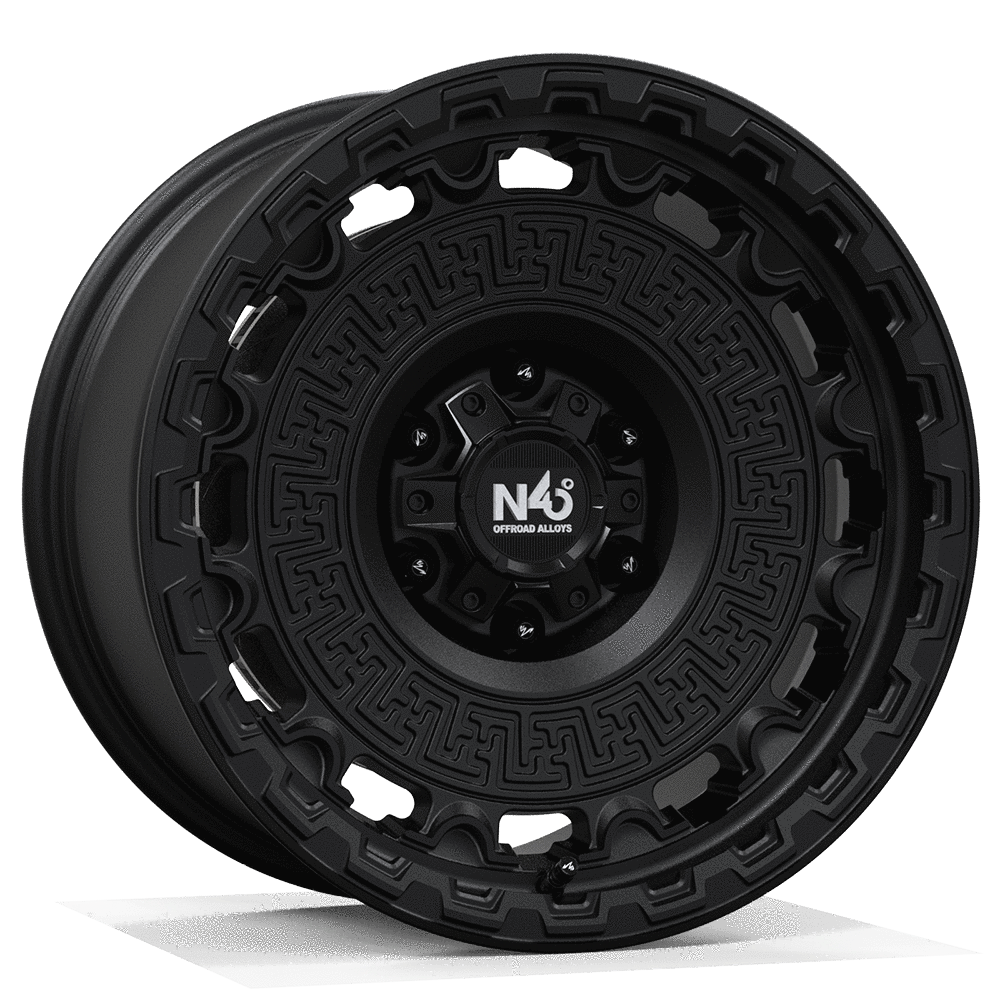

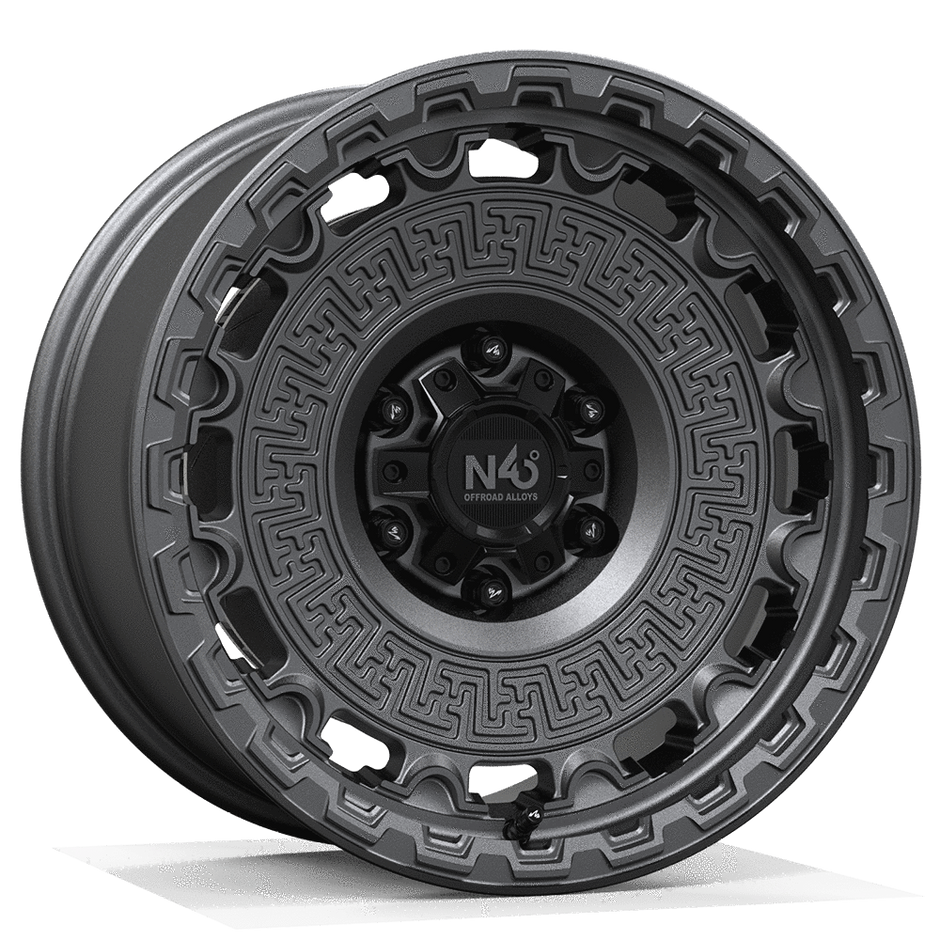

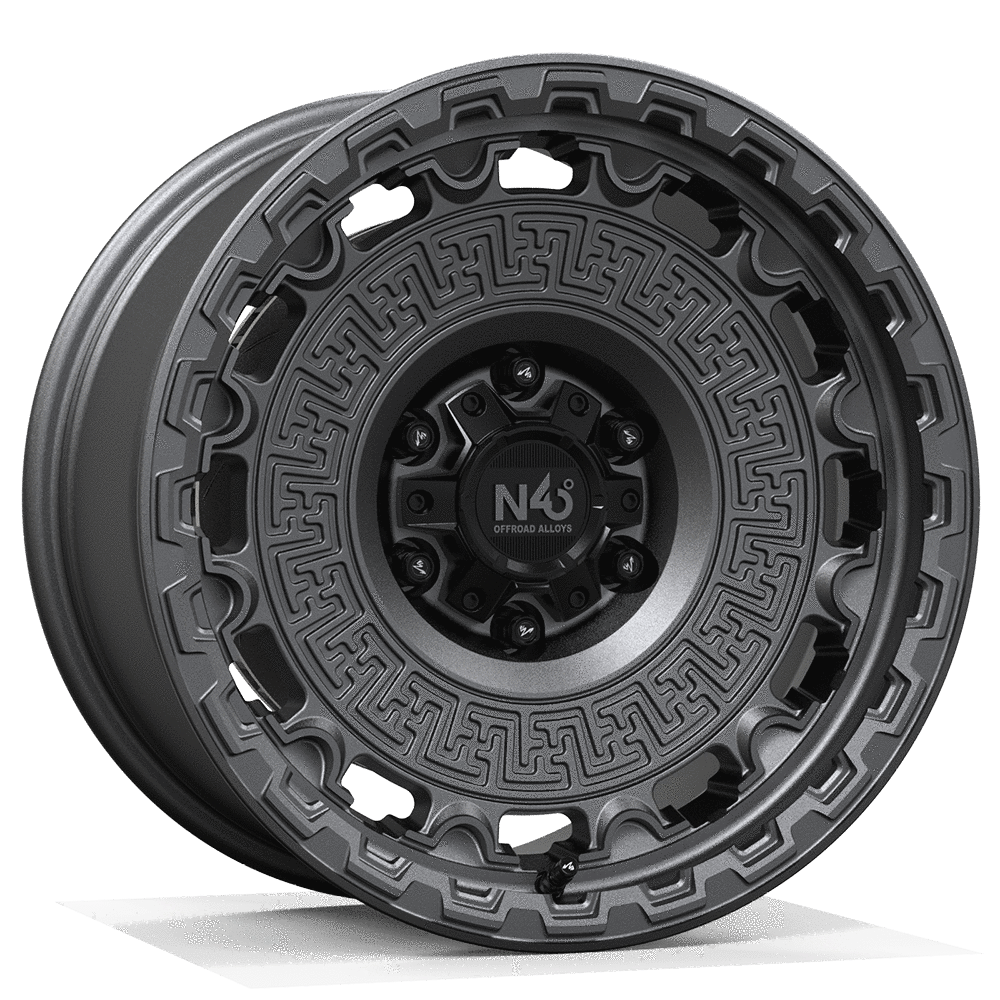

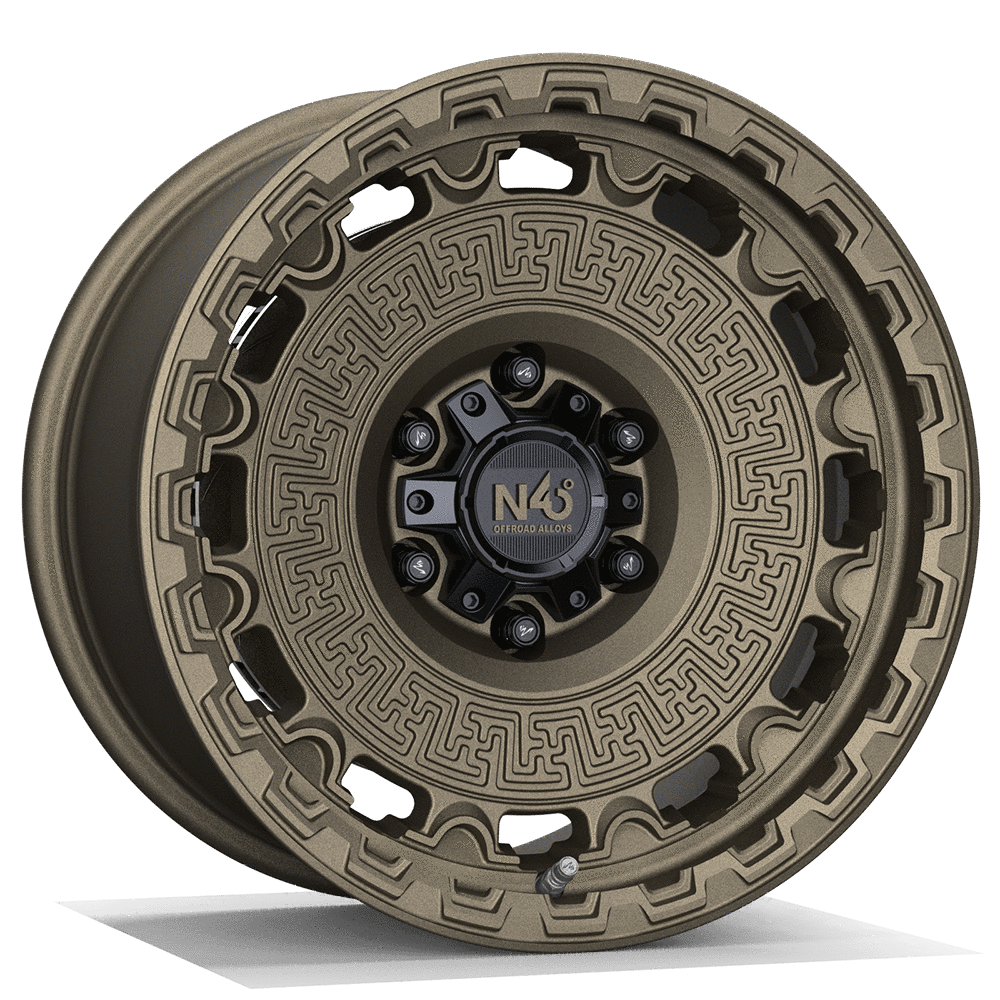

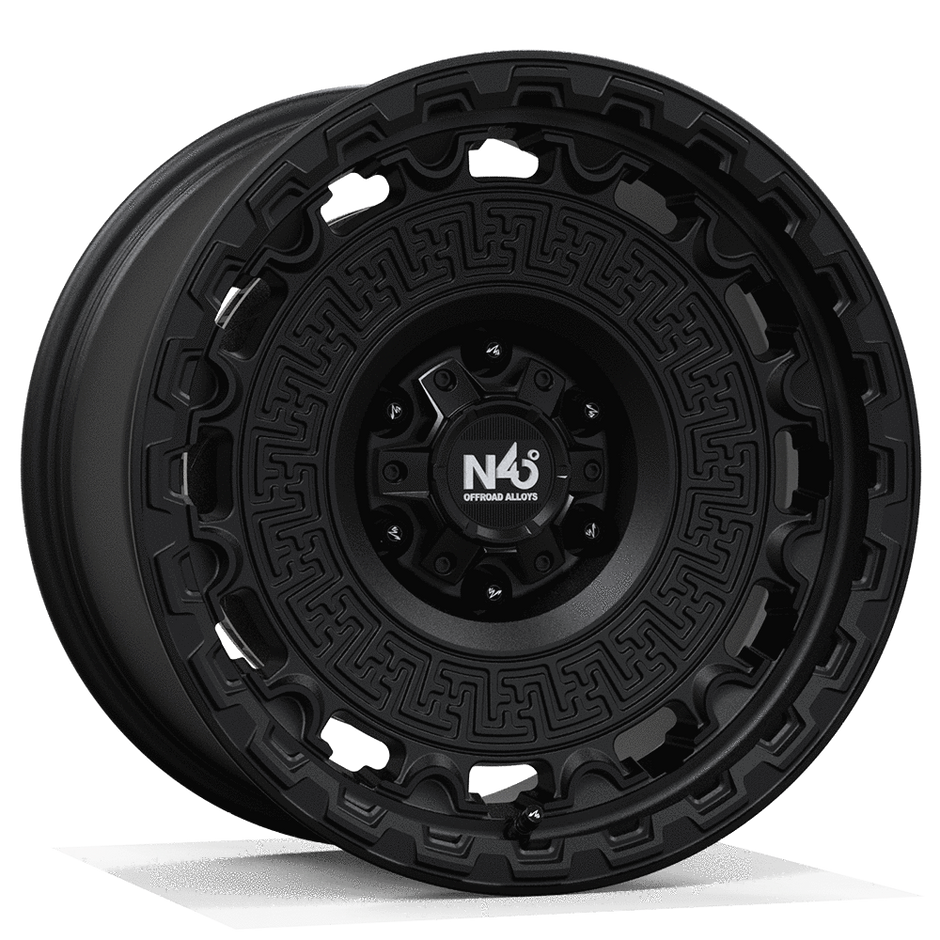

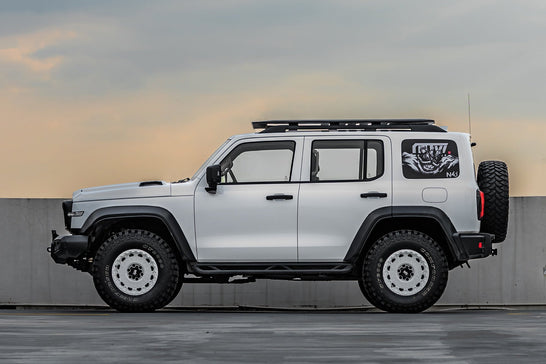

Makstton N40° CK04 is a low-pressure cast off-road wheel developed for overland and trail-focused truck and SUV builds. Its disc-style face creates a solid center section around the six-lug mounting area.
The circular face incorporates guardian-beast and horseshoe motifs, while a Great Wall-inspired pattern continues around the outer lip.
Created with INSITONS, the CK04 combines contemporary wheel proportions with traditional Chinese architectural and auspicious symbols in a production off-road format.
A new way to view wheels
VR functionality is only supported on iOS
Description
Makstton N40° CK04 is a low-pressure cast off-road wheel developed for overland and trail-focused truck and SUV builds. Its disc-style face creates a solid center section around the six-lug mounting area.
The circular face incorporates guardian-beast and horseshoe motifs, while a Great Wall-inspired pattern continues around the outer lip.
Created with INSITONS, the CK04 combines contemporary wheel proportions with traditional Chinese architectural and auspicious symbols in a production off-road format.
Wheel Install Guide
Installation & Safety
Professional installation is required. Before mounting the tires, inspect the wheels and confirm the size, offset, bolt pattern, center bore, brake clearance, and overall vehicle compatibility.
Always perform a bare-wheel test fit first. Ensure the wheel sits fully against the hub and does not contact the brakes, suspension, steering components, or bodywork.
Use the correct hub-centric rings and fasteners where required. Final tightening must be completed with a calibrated torque wrench according to the vehicle manufacturer’s specifications.
Recheck the wheel-bolt or lug-nut torque after 80–160 km (50–100 miles). Stop installation or use immediately if interference, vibration, damage, or any other abnormal condition is found.
Have a question?
Wheel Specifications
| Size | Color | ET | PCD | CB | Drill | Weight | Load | X Dist. | Tire Mounting | Socket |
|---|---|---|---|---|---|---|---|---|---|---|
| 17x9.0J | Matte Black | 0 | 6*139.7 | 100.1 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Bronze | 0 | 6*139.7 | 100.1 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Gloss White | 0 | 6*139.7 | 100.1 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Gunmetal | 0 | 6*139.7 | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Black | 0 | 6*139.7 | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Bronze | 0 | 6*139.7 | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Gloss White | 0 | 6*139.7 | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Gunmetal | 0 | BLANK | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Black | 0 | BLANK | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Bronze | 0 | BLANK | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Gloss White | 0 | BLANK | 110 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Black | 0 | BLANK | 71.6 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
| 17x9.0J | Matte Bronze | 0 | BLANK | 71.6 | Ø16*Ø33*60° | 13.2kg~ | 2500LBS | 44.2mm | Front Mounting | 17/19/21HEX |
Notes:
Specifications shown are subject to actual factory inventory.
Listed weights are based on the maximum offset (ET) and largest center bore. Actual weight may vary depending on center bore and offset. Production tolerances apply.
Use 60° conical-seat wheel bolts or lug nuts for installation. All MTW Wheel Union wheels use 60° conical bolt seats.
