MST 717
Sale price
$119.00 USD per wheel
Regular price
Regular price
$119.00 USD per wheel
Unit price
Increments of 1
Minimum of 1
Maximum of
MST 717
Sale price
$119.00 USD per wheel
Regular price
Regular price
$119.00 USD per wheel
Unit price
Production & Delivery
Estimated dispatch within 2 weeks after final specification confirmation with our team.
Lead times begin from the milestones above, not the payment date. Transit time is additional; economy shipping typically takes 30 days or longer, depending on destination and customs clearance.
All timelines are estimates. We will notify you of any changes to your expected dispatch schedule.
Description

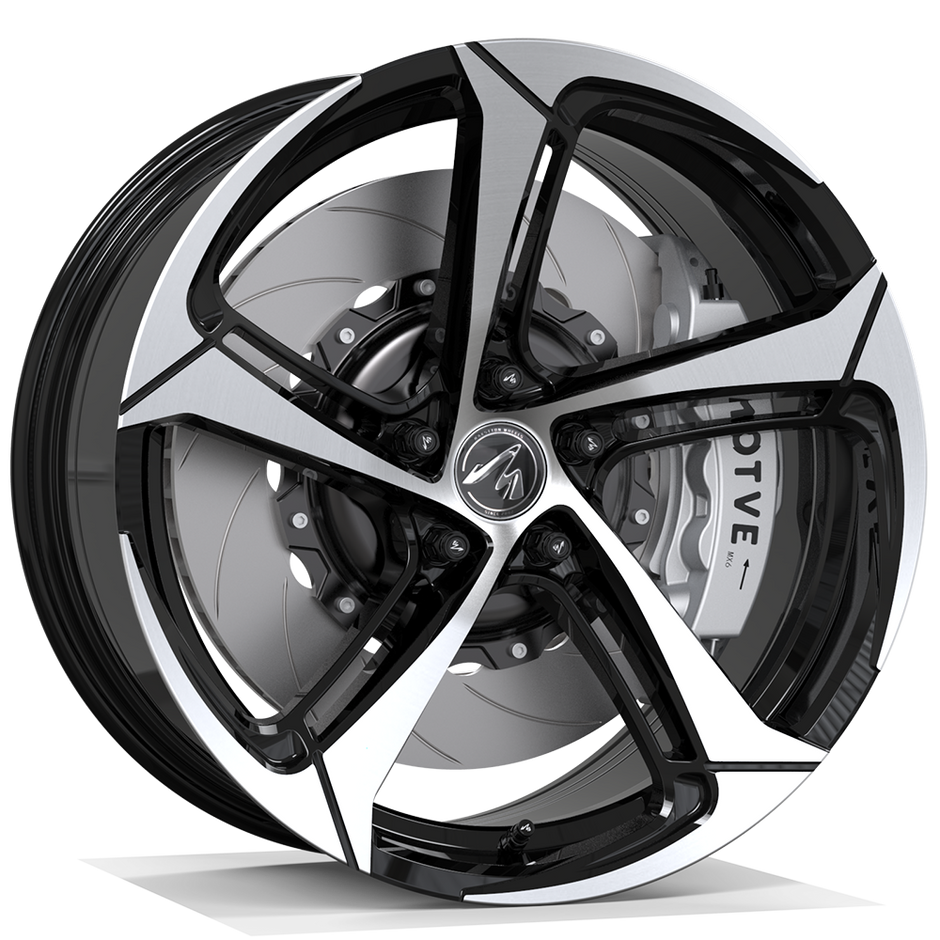

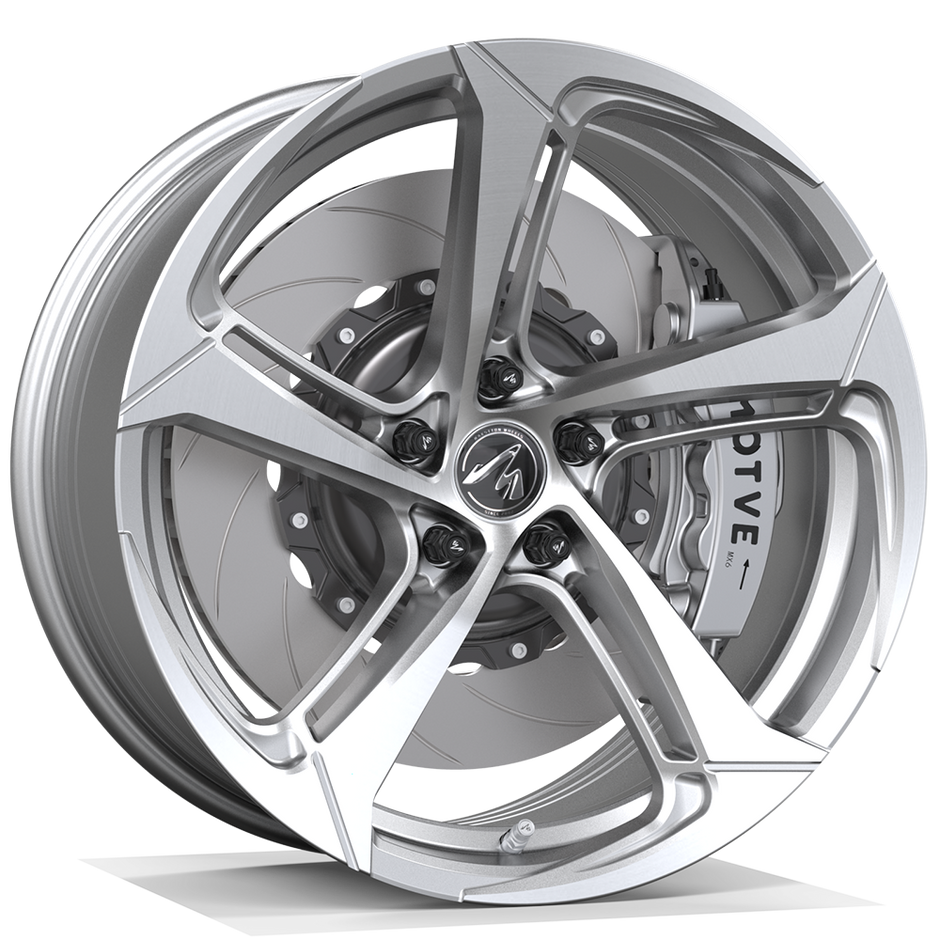

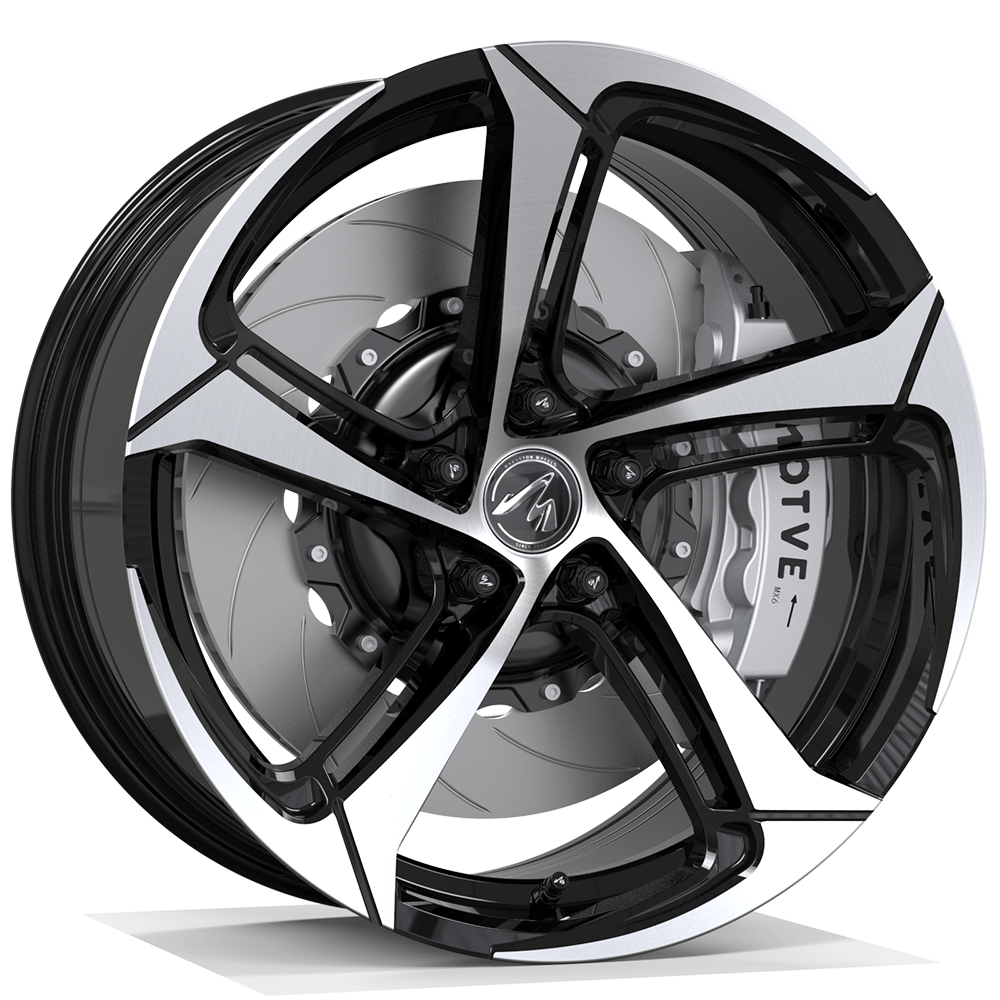

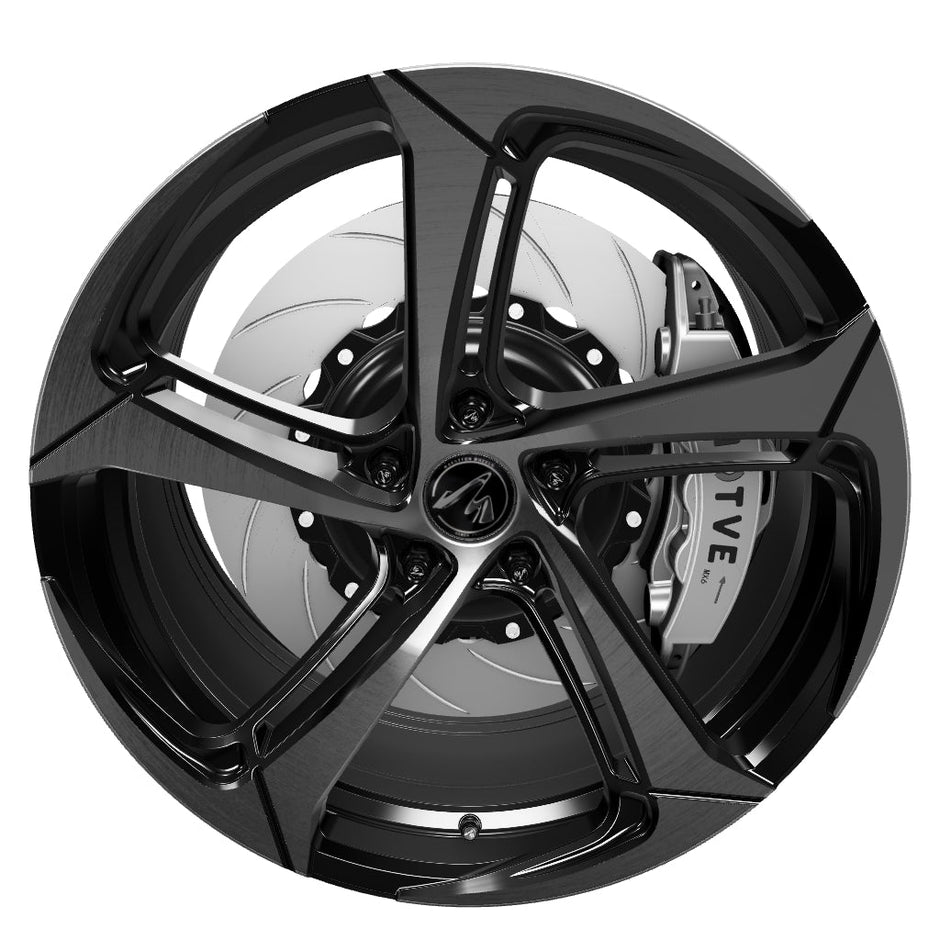

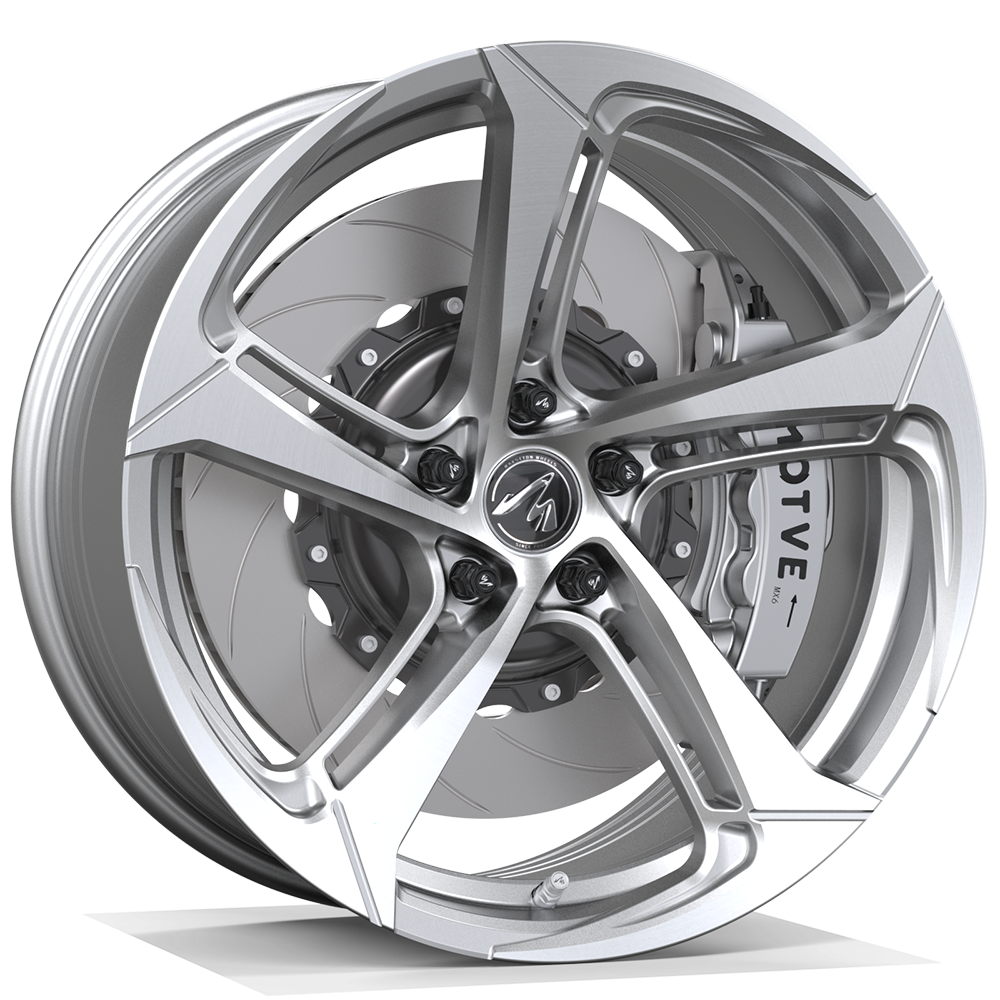

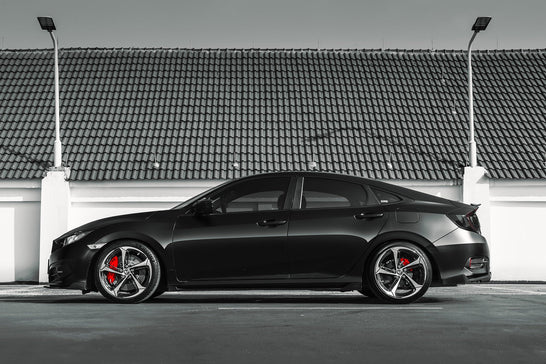

Makstton MST 717 is a low-pressure cast street wheel developed as an OEM-plus design for road vehicles. Slender blade-shaped spokes and sculpted surfaces define its open radial layout.
Inspired by ceremonial battle axes of ancient China, the blade-like spoke geometry carries the reference directly into the wheel form. The open center leaves the lug area visible, while the narrow spoke sections preserve clear spaces across the face.
A new way to view wheels
VR functionality is only supported on iOS
Description
Makstton MST 717 is a low-pressure cast street wheel developed as an OEM-plus design for road vehicles. Slender blade-shaped spokes and sculpted surfaces define its open radial layout.
Inspired by ceremonial battle axes of ancient China, the blade-like spoke geometry carries the reference directly into the wheel form. The open center leaves the lug area visible, while the narrow spoke sections preserve clear spaces across the face.
Wheel Install Guide
Installation & Safety
Professional installation is required. Before mounting the tires, inspect the wheels and confirm the size, offset, bolt pattern, center bore, brake clearance, and overall vehicle compatibility.
Always perform a bare-wheel test fit first. Ensure the wheel sits fully against the hub and does not contact the brakes, suspension, steering components, or bodywork.
Use the correct hub-centric rings and fasteners where required. Final tightening must be completed with a calibrated torque wrench according to the vehicle manufacturer’s specifications.
Recheck the wheel-bolt or lug-nut torque after 80–160 km (50–100 miles). Stop installation or use immediately if interference, vibration, damage, or any other abnormal condition is found.
Have a question?
Wheel Specifications
| Size | Color | ET | PCD | CB | Drill | Weight | Load | X Dist. | Tire Mounting | Socket |
|---|---|---|---|---|---|---|---|---|---|---|
| 17x7.5J | Piano Black / Machined Face | 35 | 5*100 | 73.1 | Ø15*Ø29*60° | 9.0kg~ | 690kg | 27mm | Front Mounting | 17/19HEX |
| 17x7.5J | Piano Black / Machined Face | 35 | 5*108 | 63.35 | Ø15*Ø29*60° | 9.0kg~ | 690kg | 27mm | Front Mounting | 17/19HEX |
| 17x7.5J | Piano Black / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 9.0kg~ | 690kg | 27mm | Front Mounting | 17/19HEX |
| 17x7.5J | Hyper Silver / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 9.0kg~ | 690kg | 27mm | Front Mounting | 17/19HEX |
| 17x7.5J | Piano Black / Machined Face | 35 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 9.0kg~ | 690kg | 27mm | Front Mounting | 17/19HEX |
| 17x7.5J | Hyper Silver / Machined Face | 35 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 9.0kg~ | 690kg | 27mm | Front Mounting | 17/19HEX |
| 17x7.5J | Piano Black / Machined Face | 30 | 5*114.3 | 64.1 | Ø15*Ø29*60° | 9.0kg~ | 690kg | 27mm | Front Mounting | 17/19HEX |
Notes:
Specifications shown are subject to actual factory inventory.
Listed weights are based on the maximum offset (ET) and largest center bore. Actual weight may vary depending on center bore and offset. Production tolerances apply.
Use 60° conical-seat wheel bolts or lug nuts for installation. All MTW Wheel Union wheels use 60° conical bolt seats.
| Size | Color | ET | PCD | CB | Drill | Weight | Load | X Dist. | Tire Mounting | Socket |
|---|---|---|---|---|---|---|---|---|---|---|
| 18x8.5J | Piano Black / Machined Face | 38 | 5*108 | 73.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 33.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 38 | 5*108 | 63.35 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 33.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 45 | 5*112 | 66.56 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 26.5mm | Front Mounting | 17/19HEX |
| 18x8.5J | Hyper Silver / Machined Face | 45 | 5*112 | 57.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 26.5mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 36.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Hyper Silver / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 36.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 35 | 5*112 | 57.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 36.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 35 | 5*112 | 73.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 36.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Hyper Silver / Machined Face | 35 | 5*112 | 73.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 36.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 30 | 5*114.3 | 64.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 36.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 35 | 5*114.3 | 64.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 36.6mm | Front Mounting | 17/19HEX |
| 18x8.5J | Piano Black / Machined Face | 45 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 26.5mm | Front Mounting | 17/19HEX |
| 18x8.5J | Hyper Silver / Machined Face | 45 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 10.4kg~ | 700kg | 26.5mm | Front Mounting | 17/19HEX |
| 18x9.5J | Piano Black / Machined Face | 35 | 5*108 | 73.1 | Ø15*Ø29*60° | 10.7kg~ | 700kg | 25.8mm | Front Mounting | 17/19HEX |
| 18x9.5J | Hyper Silver / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 10.7kg~ | 700kg | 25.8mm | Front Mounting | 17/19HEX |
| 18x9.5J | Piano Black / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 10.7kg~ | 700kg | 25.8mm | Front Mounting | 17/19HEX |
| 18x9.5J | Piano Black / Machined Face | 35 | 5*112 | 57.1 | Ø15*Ø29*60° | 10.7kg~ | 700kg | 25.8mm | Front Mounting | 17/19HEX |
| 18x9.5J | Piano Black / Machined Face | 35 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 10.7kg~ | 700kg | 25.8mm | Front Mounting | 17/19HEX |
| 18x9.5J | Hyper Silver / Machined Face | 35 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 10.7kg~ | 700kg | 25.8mm | Front Mounting | 17/19HEX |
| 18x9.5J | Hyper Silver / Machined Face | 35 | 5*114.3 | 64.1 | Ø15*Ø29*60° | 10.7kg~ | 700kg | 25.8mm | Front Mounting | 17/19HEX |
Notes:
Specifications shown are subject to actual factory inventory.
Listed weights are based on the maximum offset (ET) and largest center bore. Actual weight may vary depending on center bore and offset. Production tolerances apply.
Use 60° conical-seat wheel bolts or lug nuts for installation. All MTW Wheel Union wheels use 60° conical bolt seats.
| Size | Color | ET | PCD | CB | Drill | Weight | Load | X Dist. | Tire Mounting | Socket |
|---|---|---|---|---|---|---|---|---|---|---|
| 19x8.5J | Piano Black / Machined Face | 38 | 5*108 | 73.1 | Ø15*Ø29*60° | 11.4kg~ | 705kg | 31.1mm | Front Mounting | 17/19HEX |
| 19x8.5J | Piano Black / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 11.4kg~ | 705kg | 34.1mm | Front Mounting | 17/19HEX |
| 19x8.5J | Piano Black / Machined Face | 35 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 11.4kg~ | 705kg | 34.1mm | Front Mounting | 17/19HEX |
| 19x8.5J | Piano Black / Machined Face | 30 | 5*114.3 | 64.1 | Ø15*Ø29*60° | 11.4kg~ | 705kg | 34.1mm | Front Mounting | 17/19HEX |
| 19x8.5J | Piano Black / Machined Face | 35 | 5*114.3 | 64.1 | Ø15*Ø29*60° | 11.4kg~ | 705kg | 34.1mm | Front Mounting | 17/19HEX |
| 19x9.5J | Piano Black / Machined Face | 35 | 5*108 | 73.1 | Ø15*Ø29*60° | 11.6kg~ | 705kg | 22.1mm | Front Mounting | 17/19HEX |
| 19x9.5J | Piano Black / Machined Face | 35 | 5*112 | 66.56 | Ø15*Ø29*60° | 11.6kg~ | 705kg | 22.1mm | Front Mounting | 17/19HEX |
| 19x9.5J | Piano Black / Machined Face | 35 | 5*114.3 | 73.1 | Ø15*Ø29*60° | 11.6kg~ | 705kg | 22.1mm | Front Mounting | 17/19HEX |
| 19x9.5J | Piano Black / Machined Face | 35 | 5*114.3 | 64.1 | Ø15*Ø29*60° | 11.6kg~ | 705kg | 22.1mm | Front Mounting | 17/19HEX |
Notes:
Specifications shown are subject to actual factory inventory.
Listed weights are based on the maximum offset (ET) and largest center bore. Actual weight may vary depending on center bore and offset. Production tolerances apply.
Use 60° conical-seat wheel bolts or lug nuts for installation. All MTW Wheel Union wheels use 60° conical bolt seats.
